Products >> Autoclave Steam Sterilizer >> Class B

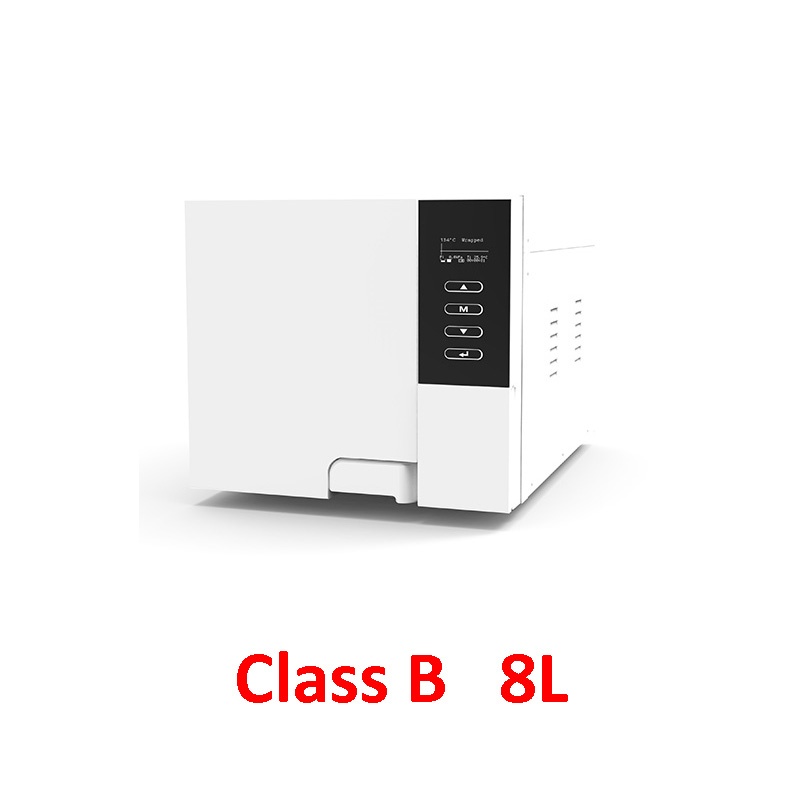

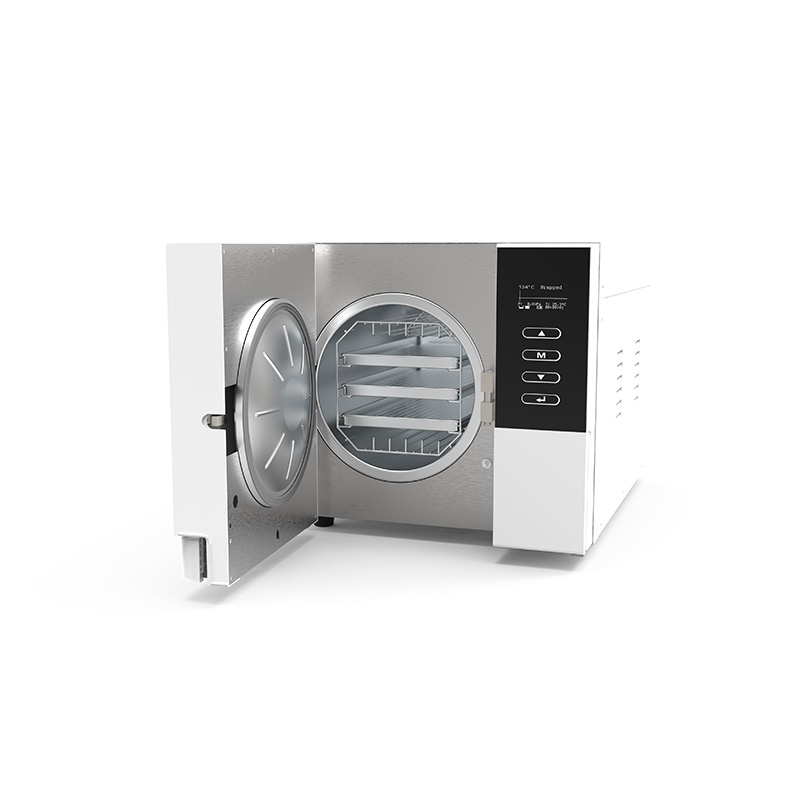

  • HG-AC708 8L Class B Sterilization USB Autoclave
  • HG-AC708 8L Class B Sterilization USB Autoclave
  • HG-AC708 8L Class B Sterilization USB Autoclave
  • HG-AC708 8L Class B Sterilization USB Autoclave
HG-AC708 8L Class B Sterilization USB Autoclave HG-AC708 8L Class B Sterilization USB Autoclave HG-AC708 8L Class B Sterilization USB Autoclave HG-AC708 8L Class B Sterilization USB Autoclave

HG-AC708 8L Class B Sterilization USB Autoclave

  Class B Sterilizers Autoclave

· Standard pre-programmed cycles: Quick 134ºC, Wrapped 134ºC, Wrapped 121ºC, Prion 134ºC, B&D Test, Helix Test, Vacuum Test.
· Other cycles: Delay start (reserve the cycle). Descale (cleaning steam generator and tube).
· Steam generator: Built-in steam generator with 2200W rated power.
· Water Reservoir: One distilled water reservoir 2.5L and one wastewater reservoir.
· Water Quality monitoring: Cycle is not available to start if the water quality worse than the value be set.
· Colored LCD Display: Displaying for cycle process, time, temperature, pressure, process alert and error codes.
· Touch Pad: Glass touch button with back light, fashionable in appearance.
· User friendly interface: Easy to operate.
· Warning system: Warning of not enough water in distiller water reservoir. Warning of wastewater tank be full. Warning of bad water quality. Warning of door unlock. Warning of printer out of paper.
· Atmospheric pressure identification system: It can automatically identify the local atmospheric pressure.
· Safety system: Over pressure safety valve. Over temperature switch. Safety lock system preventing improper door lock. Circuit breakers protecting the machine when it has short-circuited or over current. Automatic warning for maintenance.
· Extra functions: Option to be connected directly with Water Demineralizer Listo-23.

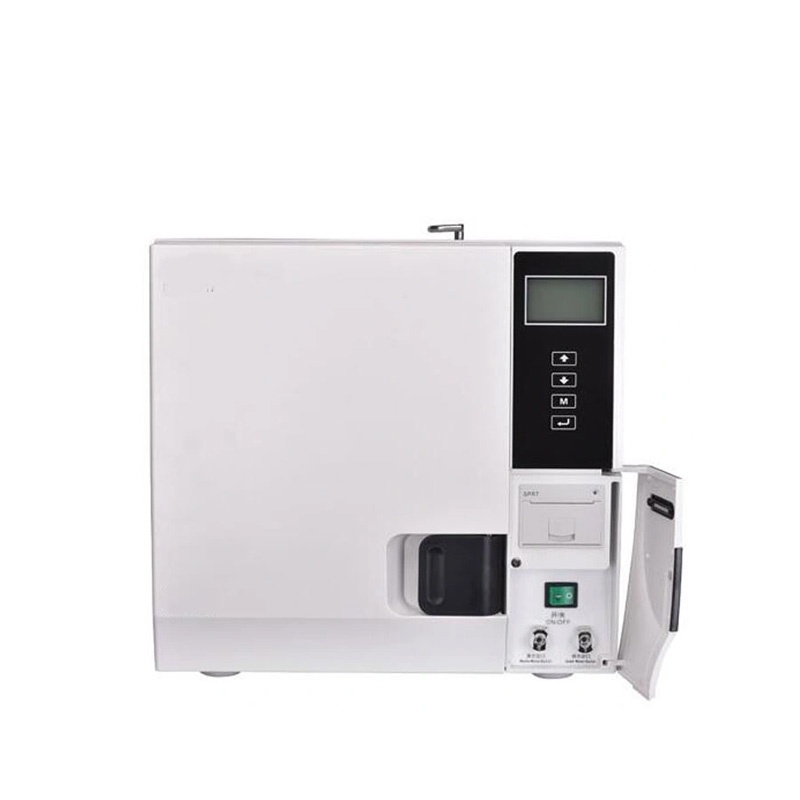

Printer (option): an internal printer is optional for all ICANCLAVE D autoclaves.
USB port: it is used for connecting a USB disc, all sterilization data are automatically output in the USB disc and can be ready directly in any PC and stored electronically.
Internal Memory: the last 10000+ cycles can be automatically stored in the autoclave system, which can be printed out at any time.
Barcode label printer port (option): it is used for connecting an optional barcode printer prints barcode labels that contain the information related to the sterilization cycle.


Technical Data

Model Number

HG-AC708

HG-AC712

HG-AC718

HG-AC723

Chamber Dimension

Ø170×320 mm

Ø200×360 mm

Ø250×350 mm

Ø250×450 mm

Chamber Volume

appr.8L

appr.12L

appr.18L

appr.23L

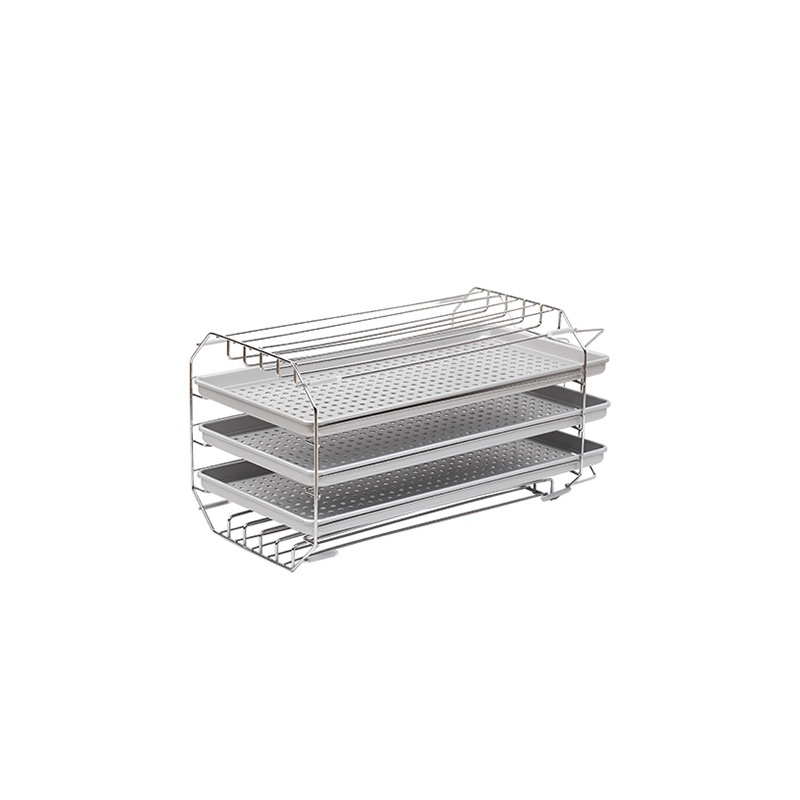

Number of Trays

2/ Max. 3

2/ Max. 3

3/ Max.5

3/ Max.5

Material of Trays

Aluminum

Aluminum

Aluminum

Aluminum

Size of Trays (WxH)

130×265 mm

160×315 mm

192×285 mm

192×380 mm

Voltage. Freq.

220/110V, 50/60Hz

220/110V, 50/60Hz

220/110V, 50/60Hz

220/110V, 50/60Hz

POWER

2300W

2300W

2300W

2300W

Overall Dimension(WxHxD)

420x370x525 mm

420x370x595 mm

490x455x600 mm

490x455x690 mm

Weight

37kg

40kg

50kg

53kg


Defult Program



Program

Temp. /Pressure

Steri. Time

Total Time (min)







HG-AC708

HG-AC712

HG-AC718

HG-AC723

Solid 134ºC

134ºC/210kpa

4min

17-22

19-24

21-33

22-35

Solid 121ºC

121ºC/110kpa

20min

25-35

25-35

30-40

31-40

Wrapped 134ºC

134ºC/210kpa

4min

22-40

25-40

25-45

30-50

Wrapped 121ºC

121ºC/110kpa

20min

38-50

42-50

45-60

48-60

Textile 134ºC

134ºC/210kpa

8min

25-45

30-45

31-50

36-55

Textile 121ºC

121ºC/110kpa

30min

50-60

52-60

53-70

44-70

Prion 134ºC

134ºC/210kpa

18min

35-55

40-55

40-60

46-65

Liquid 121ºC

121ºC/110kpa

30min

38-50

40-50

43-55

45-60

B&D Test

134ºC/210kpa

3.5min

10-20

11-23

13-25

16-30

HELIX Test

134ºC/210kpa

3.5min

10-20

11-23

13-25

16-30

Vacuum Test

/

/

17-20

18-21

19-22

20-25
