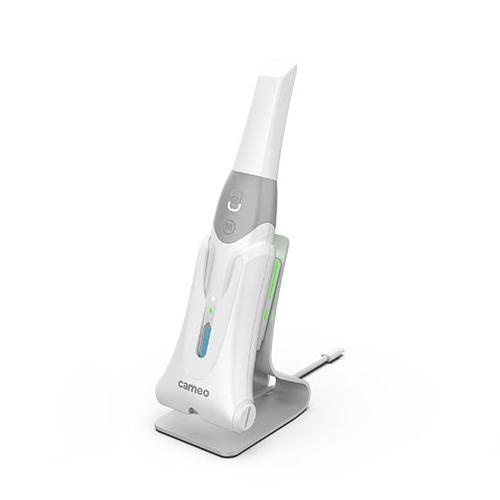

Infinity 4 Wireless Intraoral Scanner

Product No.：Infinity 4
Online Inquiry

Makes the scanning easier
Two size scan head

Infinity 4 is equipped with 2 sizes of scanning heads to meet the scanning requirements of various intraoral environments.

Double sided button

There is a scanning start and stop button on the front and back of the fuselage. Reversing the handle can switch between upper and lower dental arch scanning without changing button gestures or unplugging and plugging in the scanning head.

Long battery life

Equipped with a 3500mAh battery, it can scan continuously for 2 hours to meet all-day work needs.

Scan accurately

Using advanced image sensors combined with proprietary image processing technology, the average accuracy of the whole dental arch is as low as 20um, which fully meets the accuracy requirements of clinical use and effectively reduces the manipulation requirements of the operator.

Lossless image compression

The Infinity 4 wireless scanner captures images in their original format, allowing every detail to be perfectly preserved in the process

No calibration

With a precision assembly process and highly integrated devices, Infinity4 wireless scanners achieve lifetime calibration-free, time-tested and consistent performance, enabling users to completely eliminate expensive calibration tools and cumbersome calibration procedures.

The new wireless scanner escapes the tail line!

Cloud platform

The cloud storage space and medical technology collaboration tools provided by Infinity 4 make data transfer and information communication between clinics and laboratories more convenient and efficient. At the same time, data security is strictly supervised to ensure that user data is fully protected.

Wireless charging

When idle, place the machine into the charging base to start charging. The instant wake-up function minimizes startup time. Take the machine out of the base to start scanning at any time.

Remote sensing control

The Infinity 4 wireless scanner has a built-in high-sensitivity motion sensor. Users can zoom, pan, and flip the 3D model through the control handle, and can also access the menu for more operations. Users can complete the complete scanning process without touching the computer, which can effectively reduce the risk of cross-infection.

Spare battery

The Infinity 4 wireless scanner comes with a backup battery. In case of forgetting to charge the machine, the user only needs to take out the spare battery and replace it to continue using the mouth scanner.

Technical Parameter

Device name	Wireless intraoral scanner
Technology type	WIFI
Size	248 x 48 x 37mm
Weight	245g
Scanning field of view	16 x 14mm 12 x 12mm
Scan head disinfection times	Steam sterilization 134℃, 4 minutes, up to 60 times
Scanning accuracy	The average of the whole dental arch is 20μm
Battery life	120mm
Charging method	Wireless charging
Button	Duplex scanning button
Calibration method	Calibration free

Minimum computer requirements

Computer type	Desktop computer	Laptop
CPU	9th Generation Intel® Core™ i5-9600 AMD Ryzen™ 5 2600	10th Generation Intel® Core™ i7-10750H AMD Ryzen™ 7 4700U
Memory	16GB
Graphics card	NVIDIA GeForce GTX 1650 4GB
Harddisk	512GB SSD
Operating system	Win 10 (build 18362+) /Win 11, 64 bit

Recommended computer configuration

Computer type	Desktop computer	Laptop
CPU	9th Generation Intel® Core™ i5-9600 AMD Ryzen™ 5 2700	10th Generation Intel® Core™ i7-10750H AMD Ryzen™ 7 4750U
Memory	32GB
Graphics card	NVIDIA GeForce GTX 1660 6GB
Harddisk	1TB SSD
Operating system	Win 10 (build 18362+) /Win 11, 64 bit
