AMM-580 Metal Milling Machine

Product No.：AMM-580
Online Inquiry

[ Introduction ]

The AMM-580 is a highly versatile and robust milling machine designed to meet today's most demanding implant requirements. It can process implant bars, screw-retained bridges, custom abutments, and more with a stable structure and high machining precision.

[ AMD-580 Highlights ]

High precision spindle	Aviation cast aluminum platform
Maximum speed 60,00rpm; Shank diameter 6mm	Stable structure ; Smooth operation
Tool magazine	Large angle machining
25 tool magazines design; Various implants processing types	Rotation angle A-axis: 360° B-axis: -110°, +30° ; Fine processing of bridge undercut
Tool life management	High precision servo system
Real-time recording of tool usage time; Intelligent prompt tool replacement	Higher machining accuracy; Stable precision control

Technical Parameter

Number of axis	Five axis
Processing type	Crown/Bridge, Implant bar, Screw-Retained Bridge, Abutment, locator
Milling mode	Wet/Dry
Millable material	Titanium disc, Cobalt Chrome, Premill, Glass ceramic, PEEK, PMMA
Material thickness	10-25mm
Fixture	98mm/Block
Repeat positioning accuracy	±5um
Linear drive system	High precision linear guide slide block
Rotary drive system	High precision reducer
External dimensions	7508851663mm
Weight	500KG
Tool changer	25
Stroke	X,Y,Z axis：320120130mm A-axis：360° B-axis：-110°, +30°
Spindle	Power: 2.5kw Cooling method: water cooling Speed :60000rpm Chuck size :6mm
Input	Power supply :AC220V 50Hz 60Hz Power :3.8kw Air pressure :0.6-0.8MPa

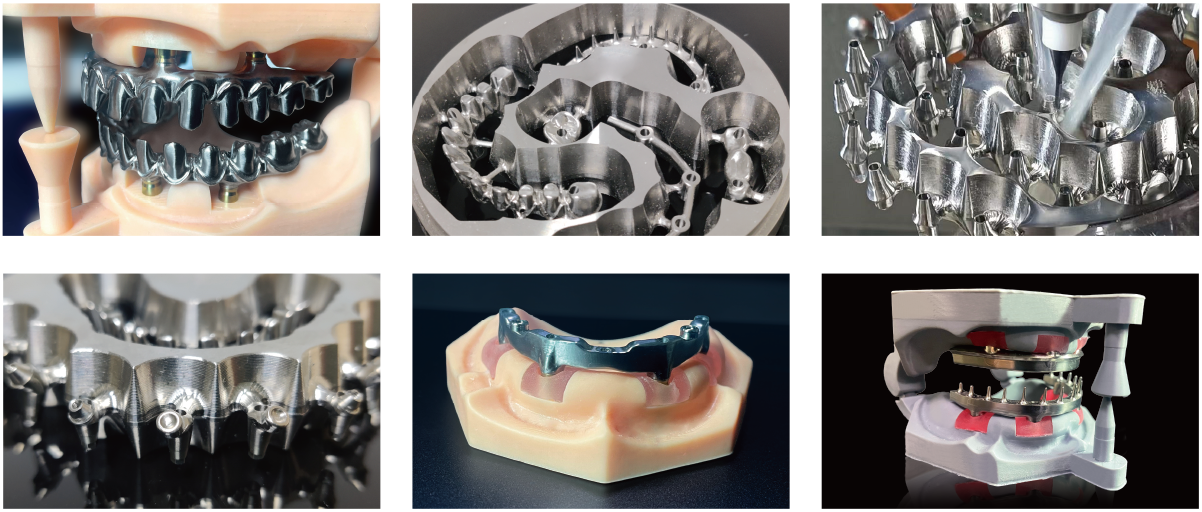

[ Detail Effect ]

[ FAQ ]

Q: How can get a catalog and price list?
A: Please use the inquiry form to request our price list and complete products' catalog, or talking with us directly through platform.

Q: What is the MOQ?
A: Our MOQ is one set per model.

Q: What is the delivery time?
A: Normally within 15 working days after all payment.

Q: What's your price terms?
A: Our price is EX-Work price. For CIF & FOB price, welcome to contact us directly by email, phone.

Q: What is the warranty for the products?
A: Normally one-year warranty, will be changed according to our specific products.

Q: What is your terms of payment?
A: If the order quantity is small, can transfer the full payment for the fast delivery. And when the total amount is large, we can also accept partial deposit for production and remaining balance before shipping.

Q: Do you accept OEM service?
A: Yes, OEM service available, we are the factory, please provide your detailed needs
