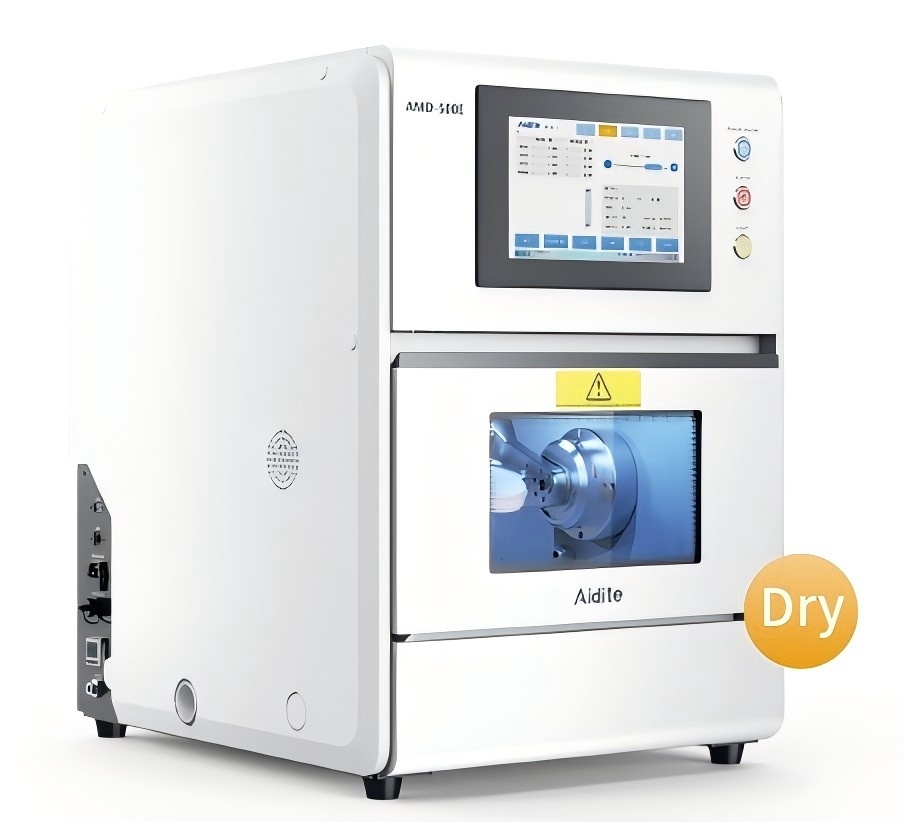

AMD-500E Dental Milling Machine

Product No.：AMD-500E
Online Inquiry

[ Introduction ]

AMD-500E 5-axis dental milling machine is mainly used for CAD/CAM processing of dental materials such as Zirconia, Pmma, Composite Materials Etc. AMD-500E is easy to operate and reliable in performance. It has an All-in-one silica dust-proof design and enables it to do 90° vertical processing. Moreover, AMD-500E is equipped with a 1/2 open fixture and a plastic secondary fixture, which effectively improves the material layout utilization, functions like automatic calibration and smart alert bring you the ideal dental material processing solution.

[ AMD-500E Highlights ]

Parameter

Platform	Aviation cast aluminum

Dimensions and weight	520×650×720(mm)

Weight	120Kg

Processing methods	Dry milling

Number of tools	8

Dust-proof	Integrated silicone

Fixture Type	Secondary fixture/98 disk(Optional)/ Block type(Optional)

Processing material thickness	10-35mm

Processing material	Zirconia,PMMA,WAX,PEEK,HPP,Soft Metal

CAM software	Open CAM System

90°buccal side machining	√

Motor	Servo motor

Air Pressure	≥6Bar

Power supply processing Base time	10-30mm

Machining time	Full Crown ＜15min，Bridge＜3h

[ Spinde ]

Air Cooling
Max:60000RPM
500W
4mm Chuck

[ Machining angle ]

A Axis: +135°,
-30° B Axis:360°

[ Machining type ]

[ Application scenario ]

[ FAQ ]

Q: How can get a catalog and price list?
A: Please use the inquiry form to request our price list and complete products' catalog, or talking with us directly through platform.

Q: What is the MOQ?
A: Our MOQ is one set per model.

Q: What is the delivery time?
A: Normally within 15 working days after all payment.

Q: What's your price terms?
A: Our price is EX-Work price. For CIF & FOB price, welcome to contact us directly by email, phone.

Q: What is the warranty for the products?
A: Normally one-year warranty, will be changed according to our specific products.

Q: What is your terms of payment?
A: If the order quantity is small, can transfer the full payment for the fast delivery. And when the total amount is large, we can also accept partial deposit for production and remaining balance before shipping.

Q: Do you accept OEM service?
A: Yes, OEM service available, we are the factory, please provide your detailed needs
