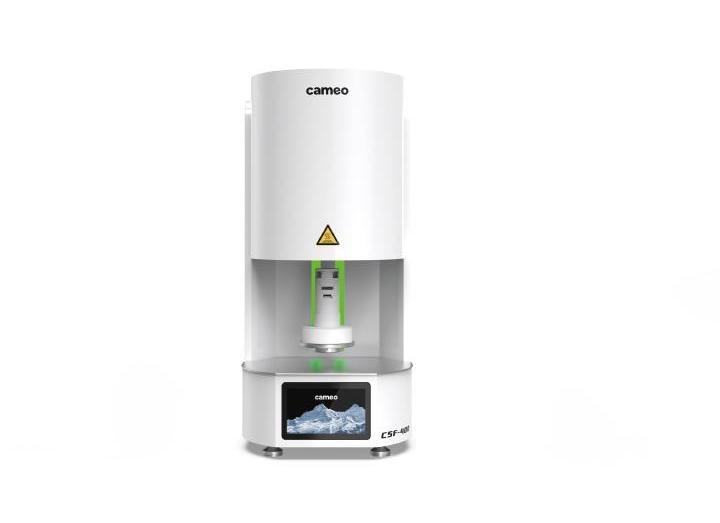

CSF-400 Rapid Sintering Furnace

Product No.：CSF-400
Online Inquiry

[ Introduction ]

CSF-400 is a special furnace for cameo's rapid burning oxidation furnace. As a new generation product of cameo's rapid burning oxidation furnace,it achieves a high match with cameo's rapid burning oxidation materials. At the same time, the single-crown sintering time of only 55min and the addition of an intelligent management module greatly improve the efficiency of denture-processing. The sintering time is short, which meets the needs of clinical use. At the same time, the two-layer heap collapse design is adopted, and a maximum of 14 single-crown dentures are sintered each time, which also meets the needs of the processing plant so that it can be applied to two different scenarios of technicians and clinical.

Parameter

Model	CSF-400
Size	φ75×275mm
Dimensions	468mm×360mm×785mm
Net weight	65kg
Power supply	220-240V, 50/60Hz, 16A
Rated Power	3.5KW
Double-walled	Per floor Each layer of crucibles has 7 single crowns/3 triple bridges
Number of curves	Preset 4/Custom 4
Temperature Range	Room temperature -1580℃
Accuracy of constant temperature	≤±1℃
Thermo couple	Type B
Heating elements	Silicon carbide rod
Heating Rate	≤150℃/min
Hearth material	Corundum mullite
Crucible material	Corundum

Combined with Aizir Flash to form a complete fast sintering solution,which can achieve the fast sintering in 30 minutes

Customer-centric, dedicated to solving problems for customers.

[ ZIRCONIA RAPID SINTERING FURNACE ]

Fast sinteringrate, Largenumber of sintering, Good sintering effect, safety

1. Fast sinteringrate
*The chart data is FPM single crown sintering data

NO.	Rate of temperature rising ℃/min	Temperature(℃)	Time(min)
1	150	1150	0
2	30	1310	0
3	20	1410	0
4	30	1550	10
5	0	0	0
6	0	0	0

2. Large number of sintering
Double-layer crucible, each layer of crucible holds 7 teeth, and can sintered up to 14 single crowns or 6 triple Bridges

3. Safety

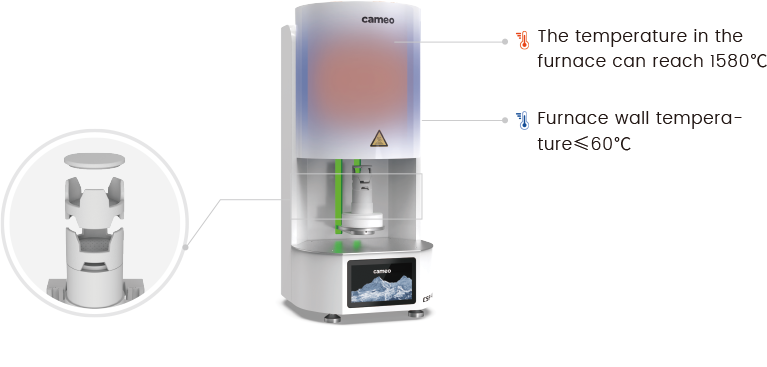

The heat insulation effect of the furnace is good, and the maximum temperature of the shell is not more than 60℃

[ EFFICIENT AND INTELLIGENT MORE THAN THAT ]

Efficient and intelligent, more than that
The pursuit of the ultimate in sintering effect, constantly updated in intelligent applications

1. Fast sintering rate
Only need 30 mins to sinter a single crown.

2. Large number of sintering
Sintered up to 14 single crowns(double crucible, 7 teeth per crucible)

3. Custom sintering curve
4 custom sintering curves, 4 preset sintering curves, can be freely adjusted to meet different needs

4. Safety
The heat insulation effect of the furnace is good, and the maximum temperature of the outer shell does not exceed 60℃

5. Various sinterable material
Suitable for cameo self-developed Aizir, 3D Pro zirconia material, self-developed fast sintering

6. High performance silicon carbide rods
Fast heating rate, can be insulated at 1580℃ for 60mins

7. Adapted chair side solution
The combination of the fast sintering zirconia and the cameo chair side machine forms the cameo chair side digital restoration solution

[ FAQ ]

Q: How can get a catalog and price list?
A: Please use the inquiry form to request our price list and complete products' catalog, or talking with us directly through platform.

Q: What is the MOQ?
A: Our MOQ is one set per model.

Q: What is the delivery time?
A: Normally within 15 working days after all payment.

Q: What's your price terms?
A: Our price is EX-Work price. For CIF & FOB price, welcome to contact us directly by email, phone.

Q: What is the warranty for the products?
A: Normally one-year warranty, will be changed according to our specific products.

Q: What is your terms of payment?
A: If the order quantity is small, can transfer the full payment for the fast delivery. And when the total amount is large, we can also accept partial deposit for production and remaining balance before shipping.

Q: Do you accept OEM service?
A: Yes, OEM service available, we are the factory, please provide your detailed needs
