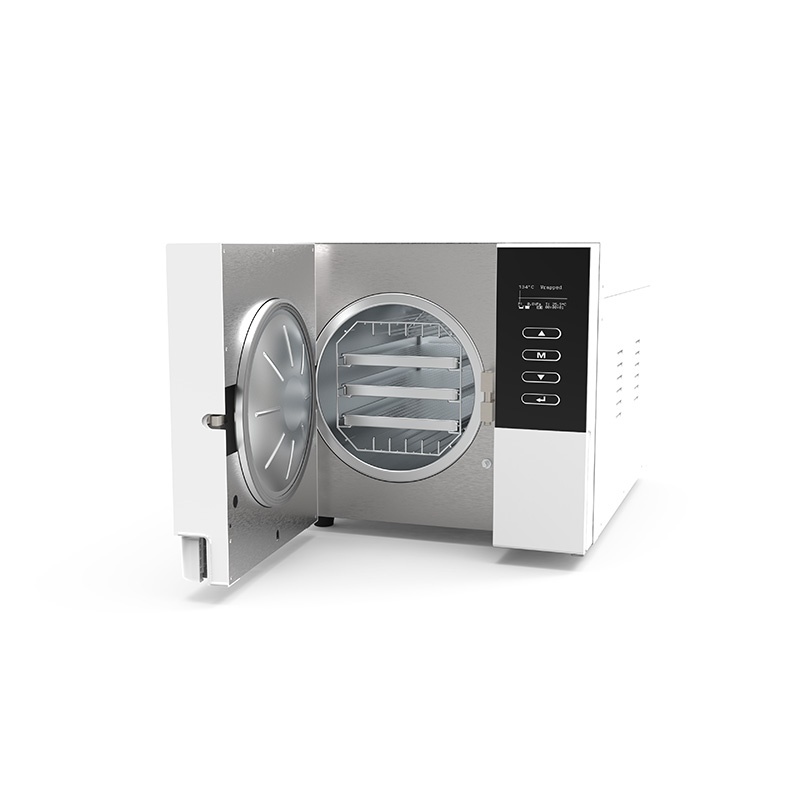

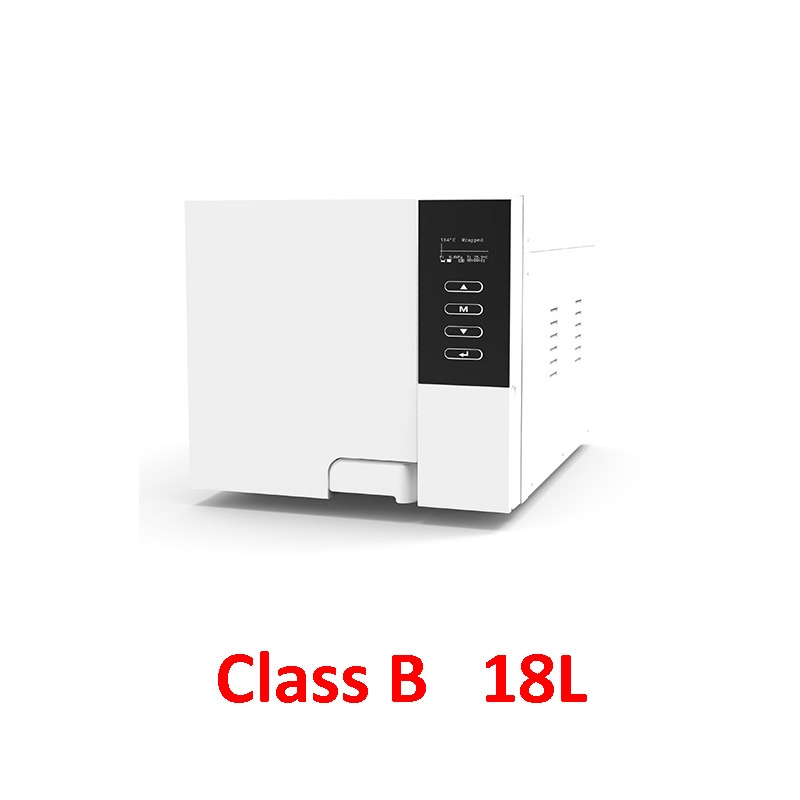

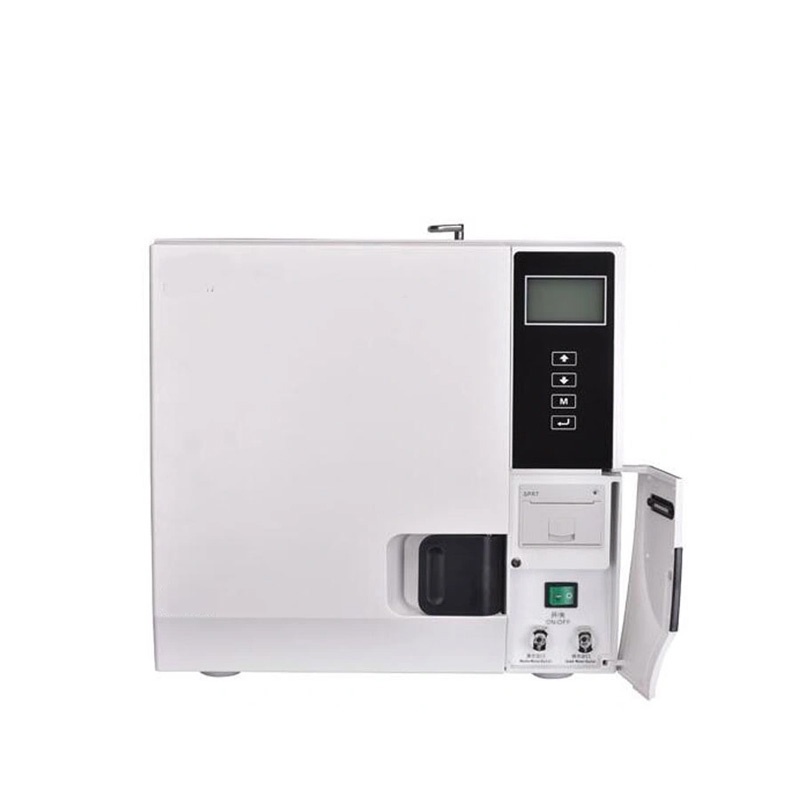

HG-AC718 18L Class B Sterilization USB Autoclave
- Product No.:HG-AC718
· Other cycles: Delay start (reserve the cycle). Descale (cleaning steam generator and tube).
· Steam generator: Built-in steam generator with 2200W rated power.
· Water Reservoir: One distilled water reservoir 2.5L and one wastewater reservoir.
· Water Quality monitoring: Cycle is not available to start if the water quality worse than the value be set.
· Colored LCD Display: Displaying for cycle process, time, temperature, pressure, process alert and error codes.
· Touch Pad: Glass touch button with back light, fashionable in appearance.
· User friendly interface: Easy to operate.
· Warning system: Warning of not enough water in distiller water reservoir. Warning of wastewater tank be full. Warning of bad water quality. Warning of door unlock. Warning of printer out of paper.
· Atmospheric pressure identification system: It can automatically identify the local atmospheric pressure.
· Safety system: Over pressure safety valve. Over temperature switch. Safety lock system preventing improper door lock. Circuit breakers protecting the machine when it has short-circuited or over current. Automatic warning for maintenance.
· Extra functions: Option to be connected directly with Water Demineralizer Listo-23.
Printer (option): an internal printer is optional for all ICANCLAVE D autoclaves.
USB port: it is used for connecting a USB disc, all sterilization data are automatically output in the USB disc and can be ready directly in any PC and stored electronically.
Internal Memory: the last 10000+ cycles can be automatically stored in the autoclave system, which can be printed out at any time.
Barcode label printer port (option): it is used for connecting an optional barcode printer prints barcode labels that contain the information related to the sterilization cycle.
Technical Data
Model Number |
HG-AC708 |
HG-AC712 |
HG-AC718 |
HG-AC723 |
Chamber Dimension |
Ø170×320 mm |
Ø200×360 mm |
Ø250×350 mm |
Ø250×450 mm |
Chamber Volume |
appr.8L |
appr.12L |
appr.18L |
appr.23L |

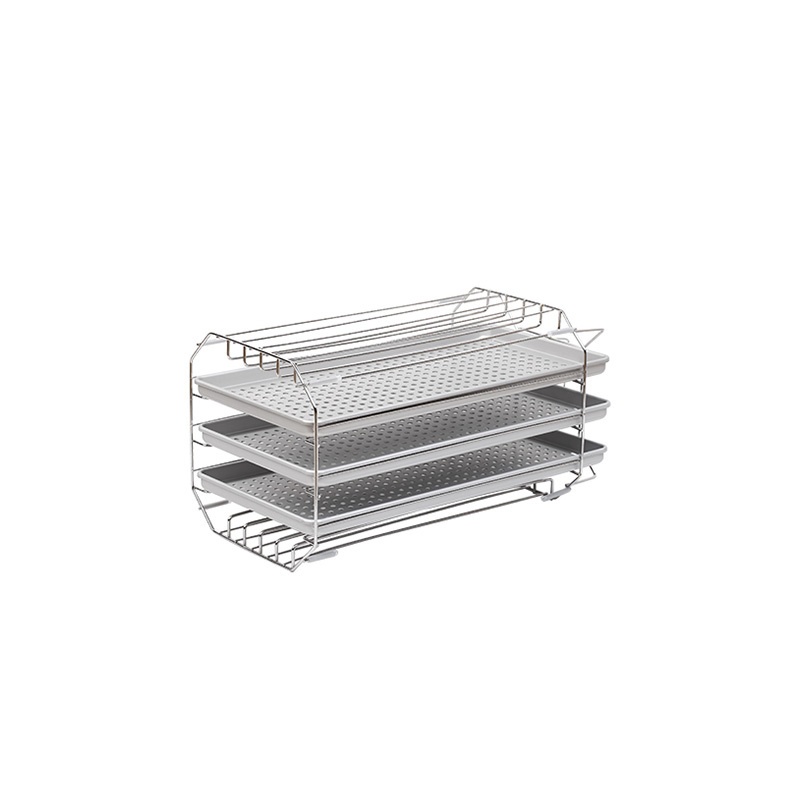

Number of Trays |
2/ Max. 3 |
2/ Max. 3 |
3/ Max.5 |
3/ Max.5 |
Material of Trays |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Size of Trays (WxH) |
130×265 mm |
160×315 mm |
192×285 mm |
192×380 mm |
Voltage. Freq. |
220/110V, 50/60Hz |
220/110V, 50/60Hz |
220/110V, 50/60Hz |
220/110V, 50/60Hz |
POWER |
2300W |
2300W |
2300W |
2300W |
Overall Dimension(WxHxD) |
420x370x525 mm |
420x370x595 mm |
490x455x600 mm |
490x455x690 mm |
Weight |
37kg |
40kg |
50kg |
53kg |
Defult Program
Program |
Temp. /Pressure |
Steri. Time |
Total Time (min) |
|||
|
|
|
HG-AC708 |
HG-AC712 |
HG-AC718 |
HG-AC723 |
Solid 134ºC |
134ºC/210kpa |
4min |
17-22 |
19-24 |
21-33 |
22-35 |
Solid 121ºC |
121ºC/110kpa |
20min |
25-35 |
25-35 |
30-40 |
31-40 |
Wrapped 134ºC |
134ºC/210kpa |
4min |
22-40 |
25-40 |
25-45 |
30-50 |
Wrapped 121ºC |
121ºC/110kpa |
20min |
38-50 |
42-50 |
45-60 |
48-60 |
Textile 134ºC |
134ºC/210kpa |
8min |
25-45 |
30-45 |
31-50 |
36-55 |
Textile 121ºC |
121ºC/110kpa |
30min |
50-60 |
52-60 |
53-70 |
44-70 |
Prion 134ºC |
134ºC/210kpa |
18min |
35-55 |
40-55 |
40-60 |
46-65 |
Liquid 121ºC |
121ºC/110kpa |
30min |
38-50 |
40-50 |
43-55 |
45-60 |
B&D Test |
134ºC/210kpa |
3.5min |
10-20 |
11-23 |
13-25 |
16-30 |
HELIX Test |
134ºC/210kpa |
3.5min |
10-20 |
11-23 |
13-25 |
16-30 |
Vacuum Test |
/ |
/ |
17-20 |
18-21 |
19-22 |
20-25 |
