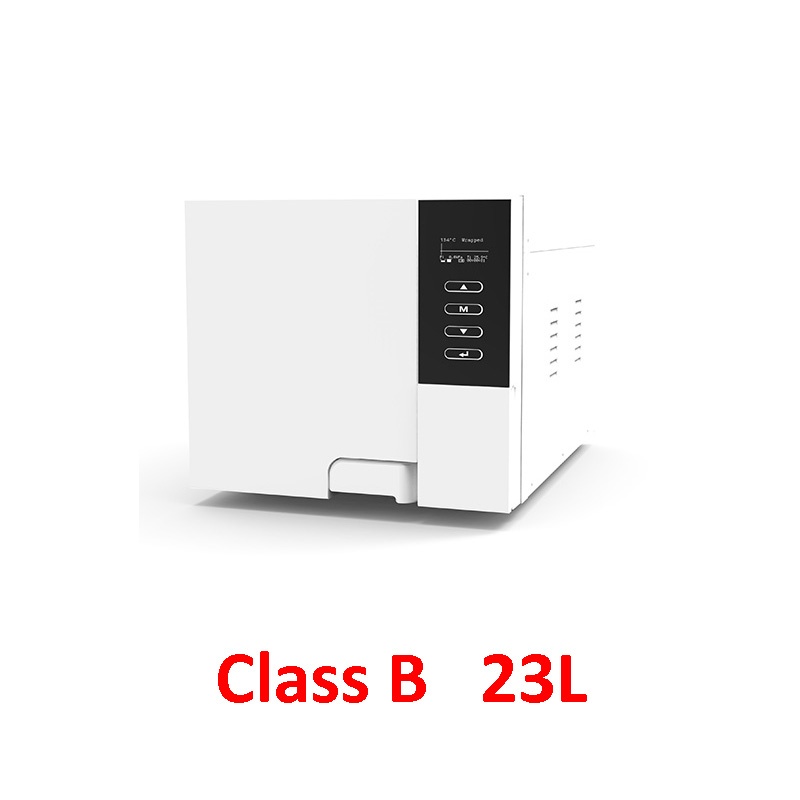

HG-AC723 23L Class B Sterilization USB Autoclave

HG-AC723 23L Class B Sterilization USB Autoclave

Product No.：HG-AC723
Online Inquiry

Class B Sterilizers Autoclave

8L Dental Sterilization USB Autoclave with Printer

· Standard pre-programmed cycles: Quick 134ºC, Wrapped 134ºC, Wrapped 121ºC, Prion 134ºC, B&D Test, Helix Test, Vacuum Test.
· Other cycles: Delay start (reserve the cycle). Descale (cleaning steam generator and tube).
· Steam generator: Built-in steam generator with 2200W rated power.
· Water Reservoir: One distilled water reservoir 2.5L and one wastewater reservoir.
· Water Quality monitoring: Cycle is not available to start if the water quality worse than the value be set.
· Colored LCD Display: Displaying for cycle process, time, temperature, pressure, process alert and error codes.
· Touch Pad: Glass touch button with back light, fashionable in appearance.
· User friendly interface: Easy to operate.
· Warning system: Warning of not enough water in distiller water reservoir. Warning of wastewater tank be full. Warning of bad water quality. Warning of door unlock. Warning of printer out of paper.
· Atmospheric pressure identification system: It can automatically identify the local atmospheric pressure.
· Safety system: Over pressure safety valve. Over temperature switch. Safety lock system preventing improper door lock. Circuit breakers protecting the machine when it has short-circuited or over current. Automatic warning for maintenance.
· Extra functions: Option to be connected directly with Water Demineralizer Listo-23.

Printer (option): an internal printer is optional for all ICANCLAVE D autoclaves.
USB port: it is used for connecting a USB disc, all sterilization data are automatically output in the USB disc and can be ready directly in any PC and stored electronically.
Internal Memory: the last 10000+ cycles can be automatically stored in the autoclave system, which can be printed out at any time.
Barcode label printer port (option): it is used for connecting an optional barcode printer prints barcode labels that contain the information related to the sterilization cycle.

Technical Data

Model Number	HG-AC708	HG-AC712	HG-AC718	HG-AC723
Chamber Dimension	Ø170×320 mm	Ø200×360 mm	Ø250×350 mm	Ø250×450 mm
Chamber Volume	appr.8L	appr.12L	appr.18L	appr.23L

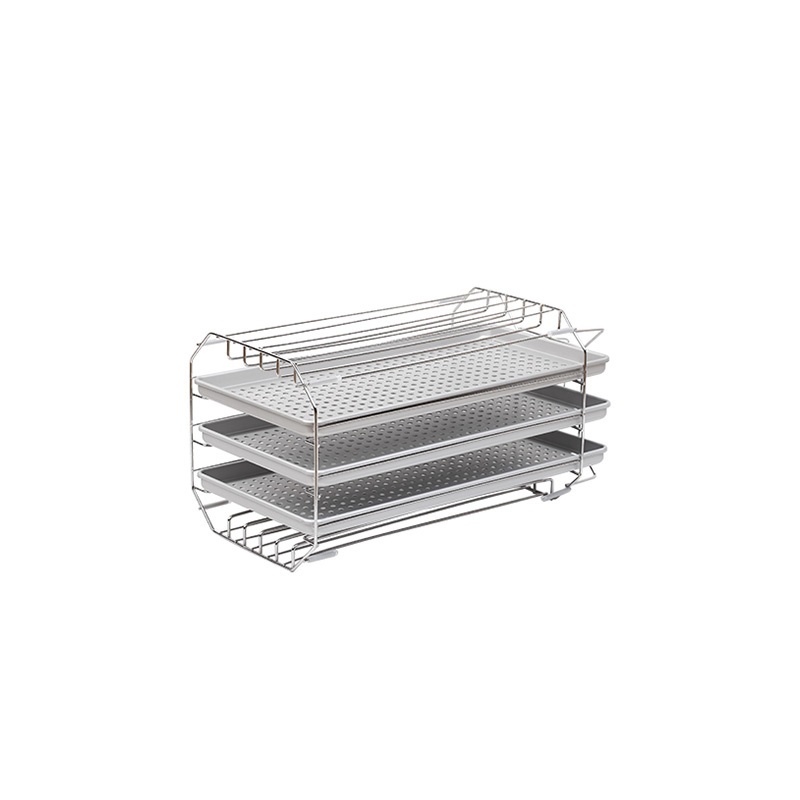

Number of Trays	2/ Max. 3	2/ Max. 3	3/ Max.5	3/ Max.5
Material of Trays	Aluminum	Aluminum	Aluminum	Aluminum
Size of Trays (WxH)	130×265 mm	160×315 mm	192×285 mm	192×380 mm
Voltage. Freq.	220/110V, 50/60Hz	220/110V, 50/60Hz	220/110V, 50/60Hz	220/110V, 50/60Hz
POWER	2300W	2300W	2300W	2300W
Overall Dimension(WxHxD)	420x370x525 mm	420x370x595 mm	490x455x600 mm	490x455x690 mm
Weight	37kg	40kg	50kg	53kg

Defult Program

Program	Temp. /Pressure	Steri. Time	Total Time (min)
Program	Temp. /Pressure	Steri. Time	HG-AC708	HG-AC712	HG-AC718	HG-AC723
Solid 134ºC	134ºC/210kpa	4min	17-22	19-24	21-33	22-35
Solid 121ºC	121ºC/110kpa	20min	25-35	25-35	30-40	31-40
Wrapped 134ºC	134ºC/210kpa	4min	22-40	25-40	25-45	30-50
Wrapped 121ºC	121ºC/110kpa	20min	38-50	42-50	45-60	48-60
Textile 134ºC	134ºC/210kpa	8min	25-45	30-45	31-50	36-55
Textile 121ºC	121ºC/110kpa	30min	50-60	52-60	53-70	44-70
Prion 134ºC	134ºC/210kpa	18min	35-55	40-55	40-60	46-65
Liquid 121ºC	121ºC/110kpa	30min	38-50	40-50	43-55	45-60
B&D Test	134ºC/210kpa	3.5min	10-20	11-23	13-25	16-30
HELIX Test	134ºC/210kpa	3.5min	10-20	11-23	13-25	16-30
Vacuum Test	/	/	17-20	18-21	19-22	20-25
